| Product name: |
New Energy Electric Vehicle Wire High Voltage Power Battery Solar EV Cable |
| Product Range: |
solar,new energy,energy storage,battery, automotive and etc. |
| Test |
Conduction test, appearance size test, hole position test. |
| cable material |
Wire harness use UL,CE, VDE,SAA,CB etc and pure copper. |
| Cable color,length: |
According to the customers' requirements. |
| Insulation: |
PVC/PE/XLPE/TPE/PTFE..etc |
| Connector and Terminal Type: |
JAE/TE/AMP/JST/ Anders/Ambofu and other Original or Replacement parts,customer-specified. |
| MOQ |
1000 PCS |
| Sample |
Samples are confirmed before mass production. |
| Certificates: |
ISO9001-2015, IATF16949-2016, CE, RoHS, SGS, TUV |
| date of delivery |
Small orders of less than 500 are 5-7 days, and more than 1000 are 7-15 days. |
| Service |
OEM and ODM,We accept customization according to your requirements. |
| reference voltage |
PVC300/600V, silicone wire 300/500V,TPE600V, XLPE400V, national standard line 300V. |
| Temperature range |
PVC:-25~80ºC, Silicone wire: -60~200ºC, TPE wire: -65~250ºC, XLPE wire: -25~125ºC, National standard wire: -30~90ºC, EV wire:125ºC |
| Payment |
TT,PAYPAL,BANK. |
Key Features
- 1.Using temperature-40ºC~+125ºCºC;-40ºC~+150ºC:-40ºC~+180ºCºC;-40ºC~+200ºC
- 2.Rated voltage 600V AC,suitable for 1500v DC high voltage conditions
- 3.Halongen free,follow the environment-friendly product's developing direction
- 4.Cable material meets GBT2408 HB, V0 combustiongrade
- 5.The belding radius not less than five times the cable5xOD,easy to install
EV Charging Cable
EV charging line is a kind of on-board high voltage cable, used to connect the charging port and battery, battery internal,
battery and engine and other components, as well as battery energy storage equipment and other fields, as the carrier of
power transmission. Due to the harsh application environment in the car, the high-voltage cables used for electric vehicles
have very high performance requirements. Application characteristics of electric vehicle cable: small wiring space, high current
and high pressure, high and low temperature environment, poor heat dissipation, harsh car driving environment, salt fog and
electromagnetic field, oil and chemicals, low smoke, halogen-free flame retardant and other environmental protection and safety
requirements. The EV charging cable is used to connect the ev charging device and the charging infrastructure, so as to transmit
power to the electric vehicles, and is equipped with a certain number of signal lines, control lines, power auxiliary lines, etc.,
to ensure the accurate control and safe operation of the whole charging process. Charging cables are generally used in charging
stations, parking lots, hotels, communities, garages and other areas, and portable charging cables can be placed in the car.
Production Environment
Production testing equipment
We have a strong R&D team,6 people in the engineering department,they all have more than 10 years of technology and experience in the field of wire and cable,professional focus on wire and cable solutions to ensure that we provide the most accurate and effective solutions to our customers.The quality control department has 10 people,from inxoming materials to shipping,esch step is strictly supervised to ensure that the products reach the customer's hands are 100% good.The production staff has more than 50 people, who are experienced in prodution.
Certifications
We have obtained the product authorization:
We have obtained the quality management system certification of:
- ISO 9001-2015 (all products); ISO 13485 (Medical device industry), IATF 16949 (automotive industry);
The ULXLPE insulation is:
- UL3674,UL3321,UL3320,UL3266,UL3173,UL3271,UL3385,UL3386,UL10369,UL3331,UL3398,UL3886,UL3817;
Silicone insulation of:
- UL3135,UL3132,UL3123,UL3530,UL3512,UL3577,UL3212,UL3529,UL3702,UL3075,UL30005,UL3689;
The FEP insulation:
- UL1332,UL1330,UL1331,UL1333,UL1577,UL1592,UL1723,UL1901,UL1591,UL10064

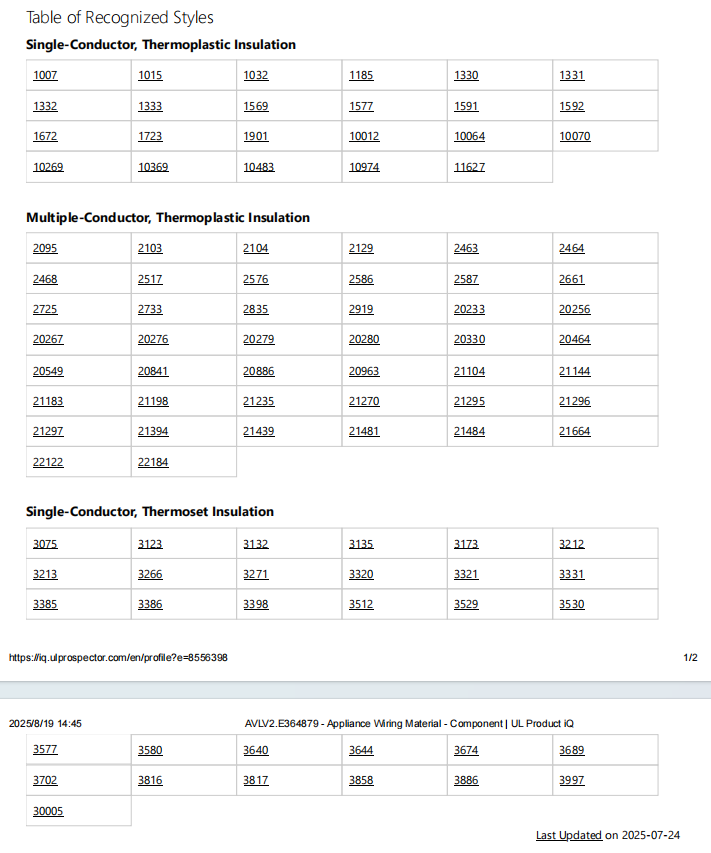

UL certified model
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
